General product overview
General description of the product category

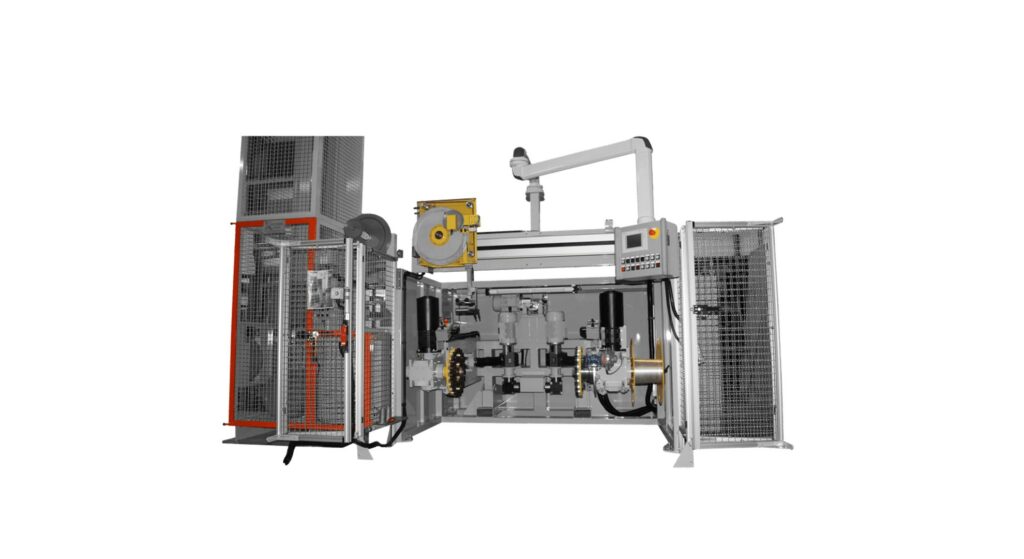

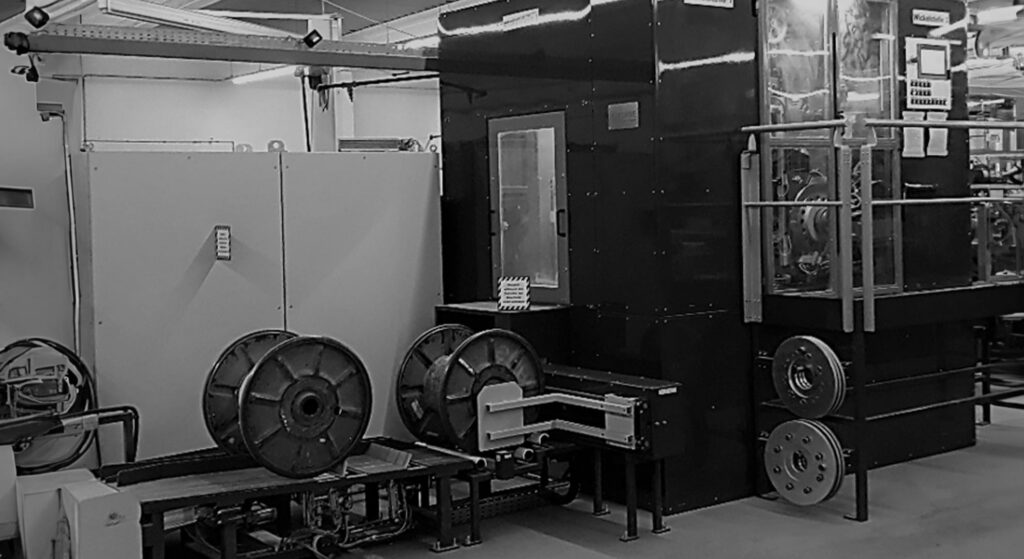

PINTLE TAKE-UP
Realizable designs
- Designed as lifting arm, pintle, parallelogram, portal take-up
- Drive via pin or friction plate
- Spool lifting hydraulically or electrically
- Spool clamping pneumatically, hydraulically or electrically
- Traversing execution possible

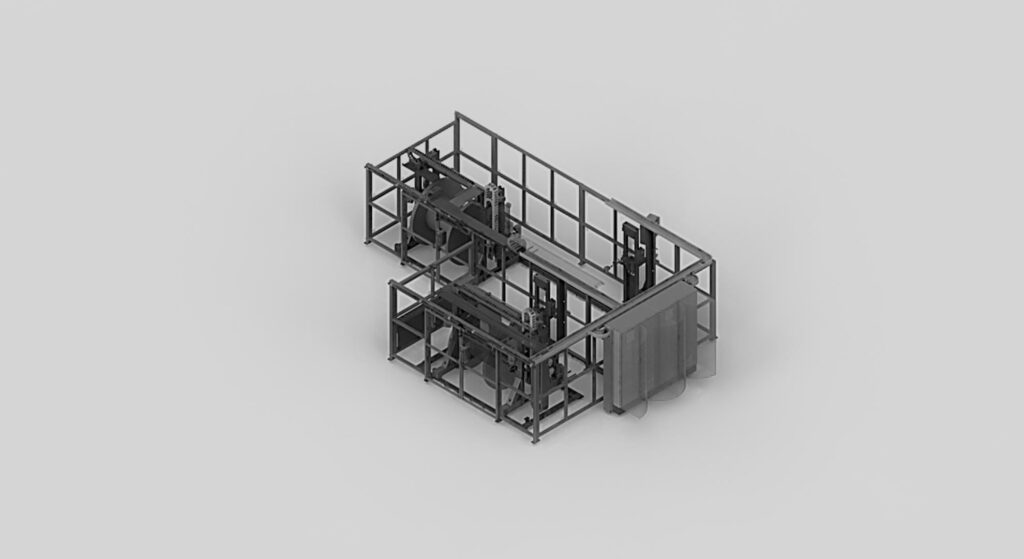

- Realizable as double take-up
- Optional with product feed forward and cutting unit
Border areas of this product category
Spool flange diameter
250 – 3,000 mm
Spool weight
max. 20,000 kg
Take-up speed
max. 500 m/min.
Tension force
10 – 5000 N
Realizable designs

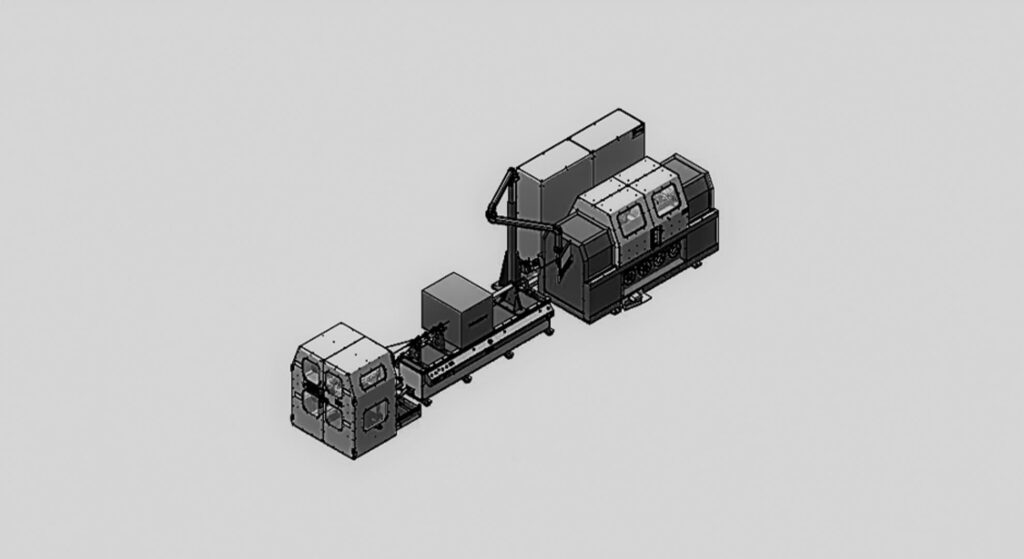

FLANGE DRIVEN TAKE-UP
Realizable designs
- Compact design
- Driven via spool flange
- Tension force pneumatically adjustable
- Product-friendly installation variants through mechanical or electrical laying unit
- Optional with spool lifting unit, integrated dancer or capstan
- Also available as combined payoff/take-up unit
Border areas of this product category
Spool flange diameter
250 – 1250 mm
Spool weight
max. 1000 kg
Take-up speed
max. 60 m/min.
Tension force
3 – 300 N
Realizable designs

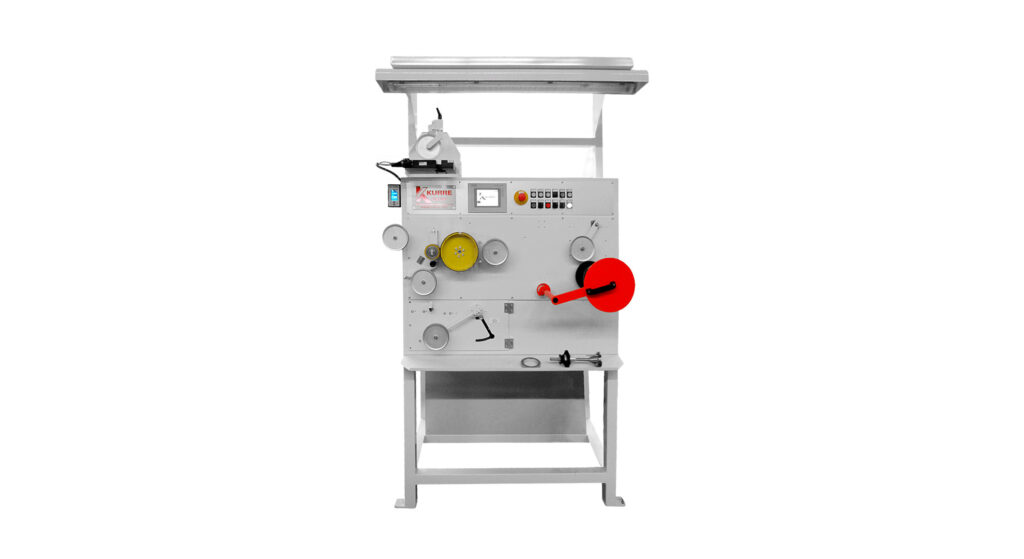

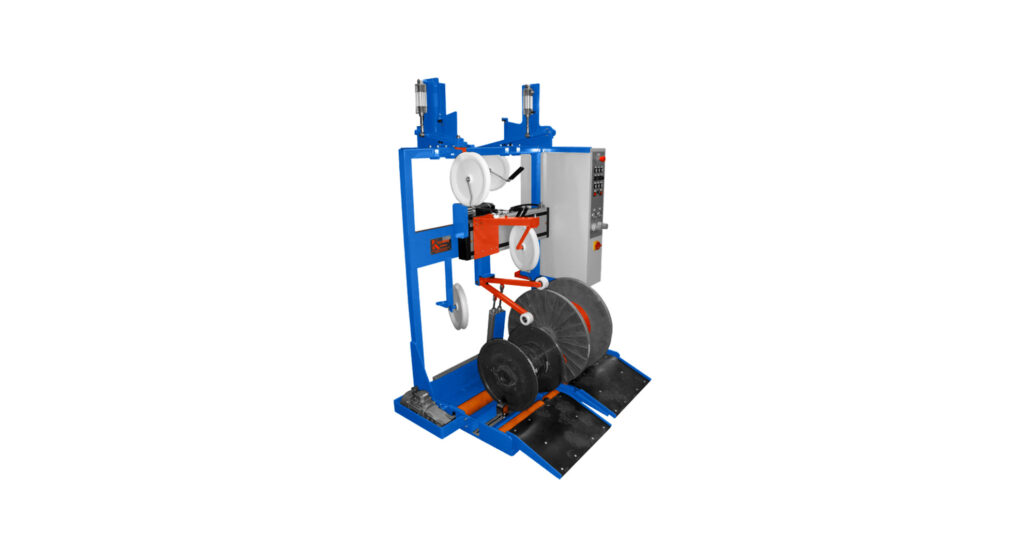

SHAFT TAKE-UP
Realizable designs
- Compact design
- Changeable spool shafts
- Product-friendly installation variants through mechanical or electrical laying unit or traversing spool
- Optional with spool lifting unit, integrated dancer or capstan
Border areas of this product category
Spool flange diameter
100 – 800 mm
Spool weight
max. 100 kg
Take-up speed
max. 200 m/min.
Tension force
0.1 – 50 N
